Landscape C Curved
Landscape C Curved 800R Wide Color Gamut Edge Lighten Closed Frame TouchMonitor

Features & Benefits
- ›Landscape Curved C Type R800
- ›Wide color gamut and high color saturation
- ›Brightness 400nits
- ›FHD resolution
- ›P-Cap technology, tempered glass

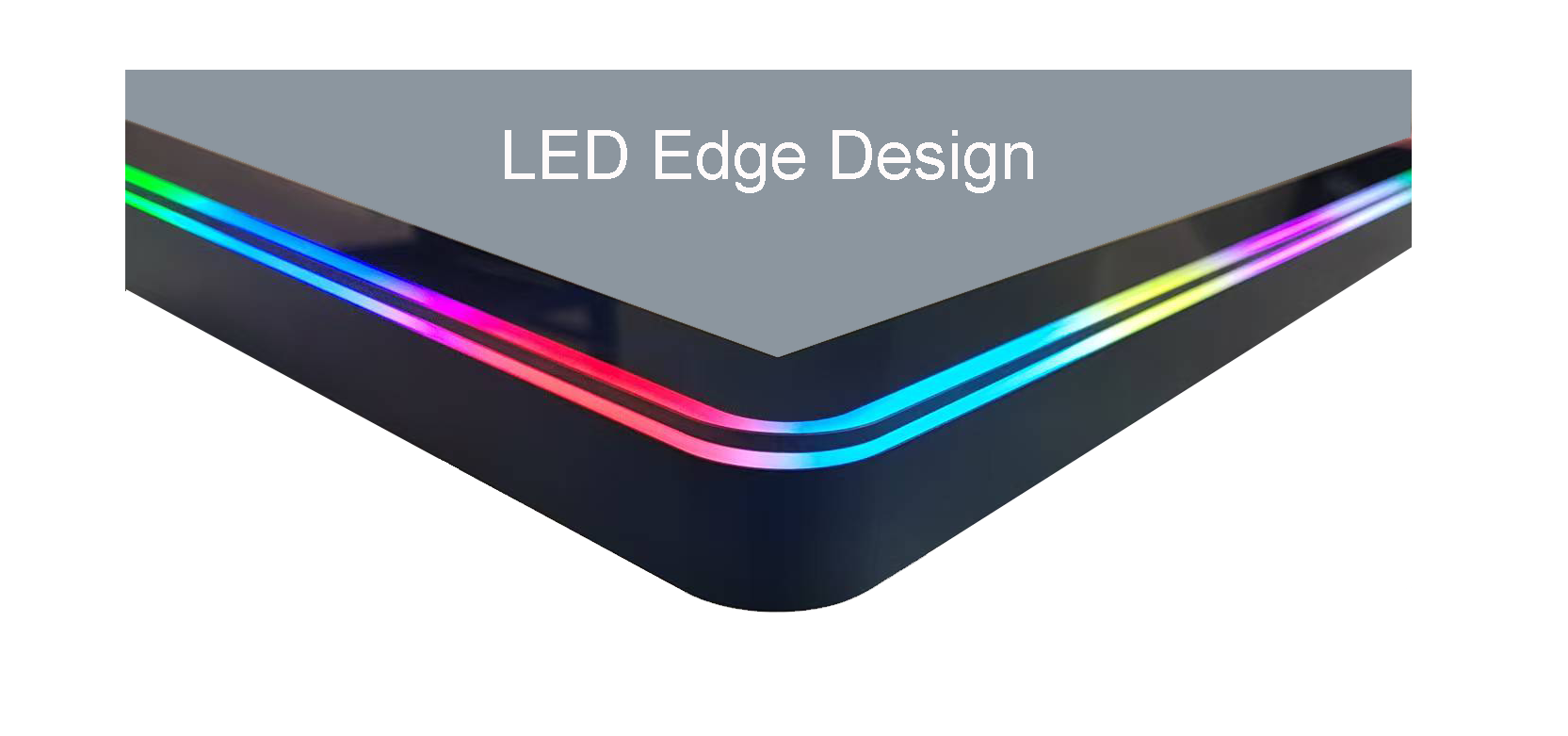

- ›LED Edge lighten design
- ›Easy integration and low maintenance
- ›Excellent performance and reliability
Applications
- ›Gaming
- ›Desktop
- ›Entertainment
- ›Advertisement
Product Overview

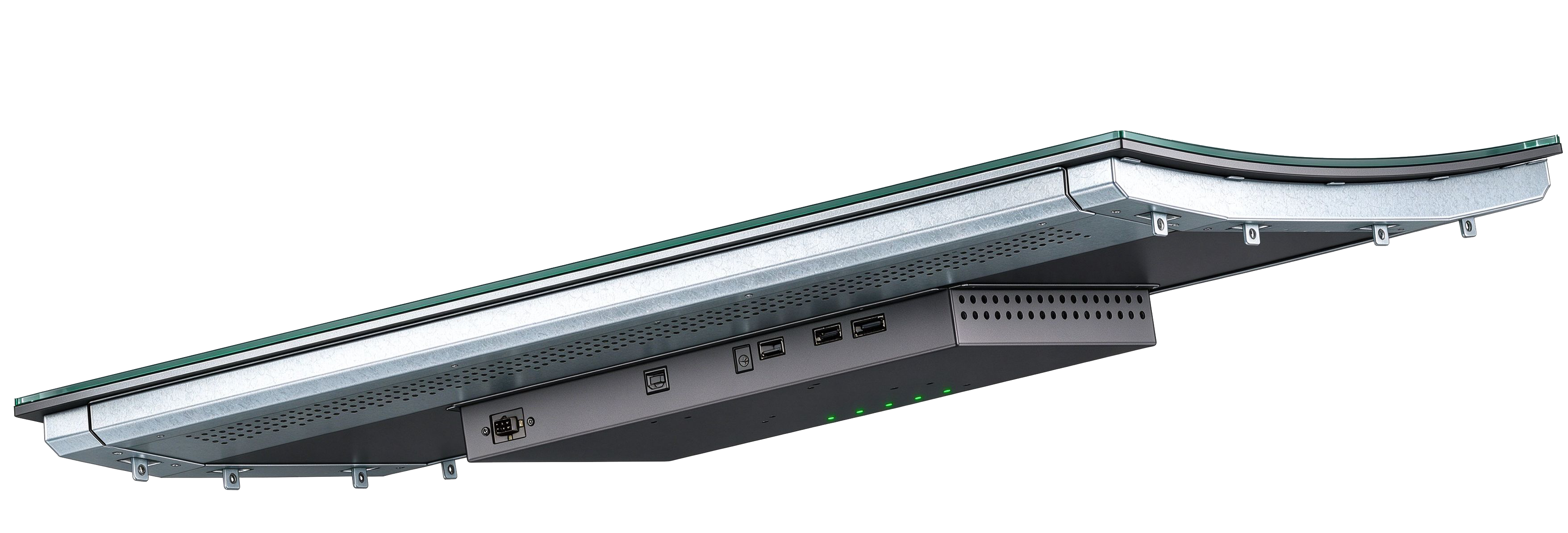

The CTT Landscape Curved C 800R is a wide color gamut closed-frame touch monitor engineered for landscape-mode deployment via floating mounts, tabletop stands, wall mounts, or floor stands.
Featuring air bonding construction and edge LEDs, the monitor incorporates an industrial-grade, full-viewing-angle FHD curved LCD panel. CTT's wide color gamut technology elevates color saturation and image quality, while the 800R curvature aligns with the natural viewing field of the human eye. Precise capacitive touch control and advanced imaging technology ensure a smooth, responsive touch experience and superior visual enjoyment. The edge LED strip, optimized for landscape orientation, positions the display as an ideal touch-and-display solution.
As a bartop entertainment device, the Curved C addresses a growing challenge: legacy machines are increasingly failing to hold players' attention. By delivering a more engaging, immersive experience, this landscape curved touch monitor serves as an innovative solution that keeps players entertained longer—and keeps them at the machine.
The monitor is widely deployed across self-service equipment, the gaming industry, commercial spaces, and industrial applications.
Specification
| Available Size | 27"/32" |
| Curvature | 800R |
| LED Decoration Design | Edge/ Front/ Halo/ Tailored |
| LCD Resolution | 1920×1080 (FHD) |
| LCD Brightness | 400 cd/m² |
| Colors | 16.7M |
| Saturation | Wide Color Gamut (≥85% NTSC 1931) |
| Contrast Ratio | 3000:1 |
| View Angle | 178°/178° |
| Touch Technology | P-Cap |
| Operation System | N/A |
| Computer Configuration | Optional |
| I/O | HDMI, DP, USB, DC Power input |
| Power Consumption | Refer to Datasheet |
| Accessories | Power Adapter, HDMI cable, USB cable |
| Warranty | 1 Year |
