Portrait S Curved
Portrait S Curved 1000R&1200R Wide Color Gamut Edge Lighten Closed Frame TouchMonitor (4K)
Features & Benefits
- ›Curved S Type R1000/R1200
- ›Wide color gamut and high color saturation
- ›Brightness 500nits and customizable
- ›UHD (4K) resolution
- ›P-Cap technology, tempered and safety glass
- ›Dual-side viewing capability
- ›Easy integration and low maintenance
- ›Excellent performance and reliability
Applications
- ›Gaming
- ›Entertainment
- ›Casino
- ›Self-service
Product Overview

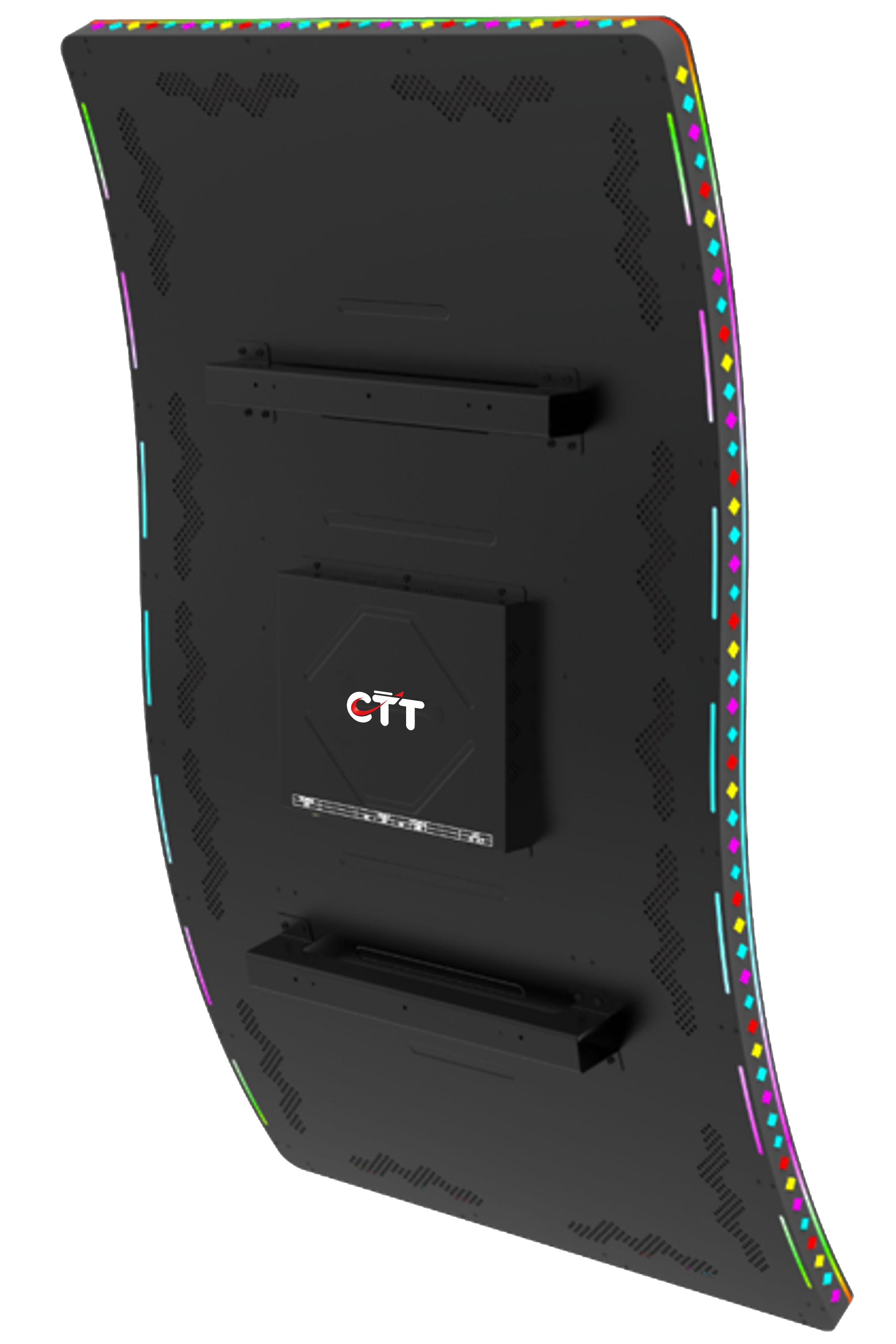

The CTT 55" Curved S is a wide color gamut open-frame touch monitor available in 1000R and 1200R curvatures, built for flexible deployment in both portrait and landscape orientations—using floating mounts, tabletop stands, wall mounts, or floor stands.
Featuring air bonding construction and edge-lit LEDs, the monitor is powered by an industrial-grade, full-viewing-angle 4K UHD curved LCD panel. CTT's wide color gamut technology enriches color saturation and overall image quality, while the R1000&R1200 curvature is optimized to match the natural viewing field of the human eye for a more comfortable, immersive experience. Combined with precise capacitive touch control and advanced imaging technology, it delivers a smooth, responsive touch experience and rich visual quality.
It is widely deployed across self-service kiosks, the gaming industry, commercial spaces, and industrial applications.
Specification
| Available Size | 55" |
| Curvature | 1000R&1200R |

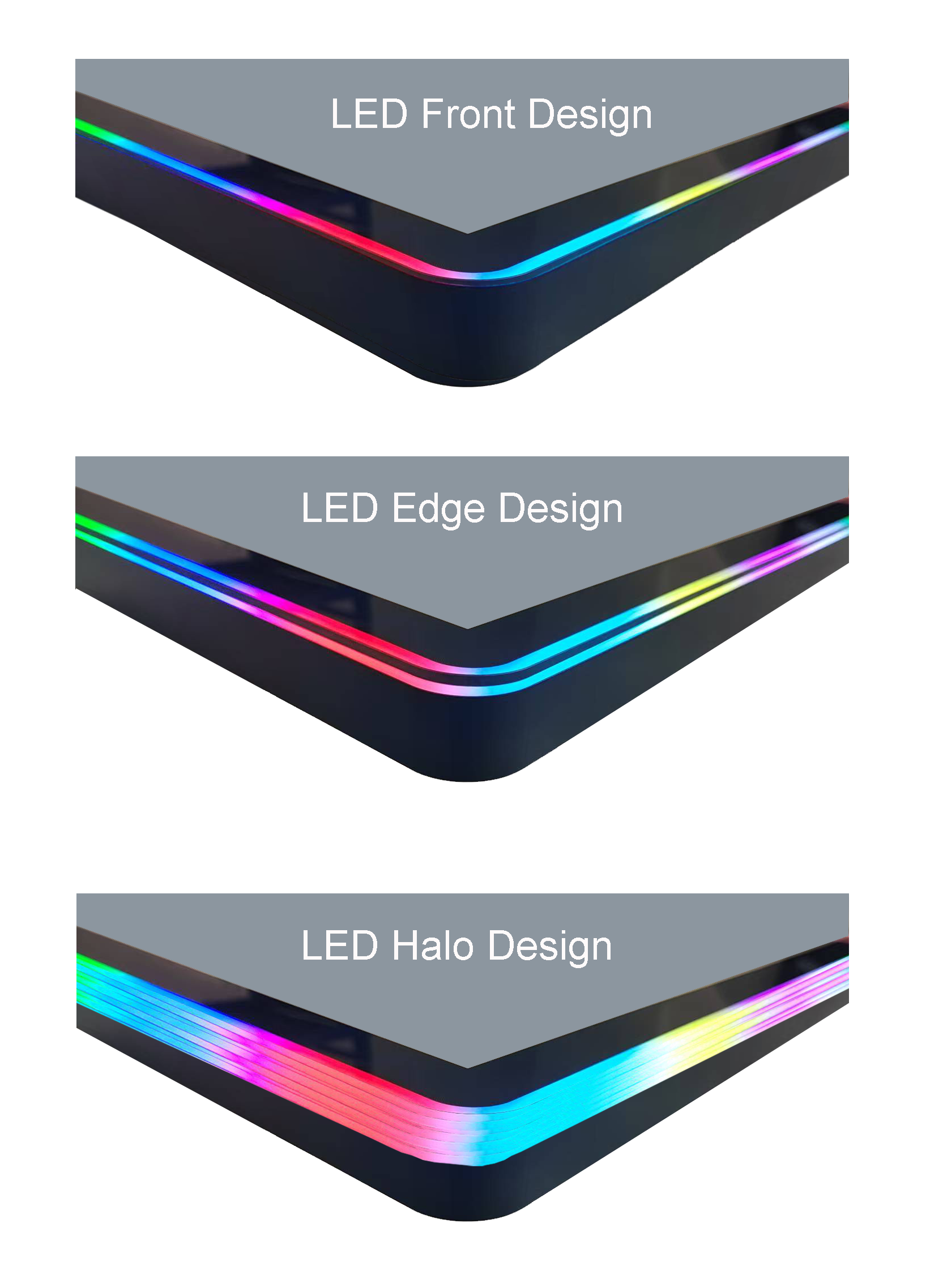

| LED Decoration Design | Edge/ Front/ Halo/ Tailored |
| LCD Resolution | FHD/UHD |
| LCD Brightness | 500 cd/m² |
| Colors | 16.7M(FHD)/1.07B(UHD) |
| Saturation | Wide Color Gamut (≥85% NTSC 1931) |
| Contrast Ratio | 4000:1 |
| View Angle | 178°/178° |
| Touch Technology | P-Cap |
| Operation System | N/A |
| Computer Configuration | Optional |

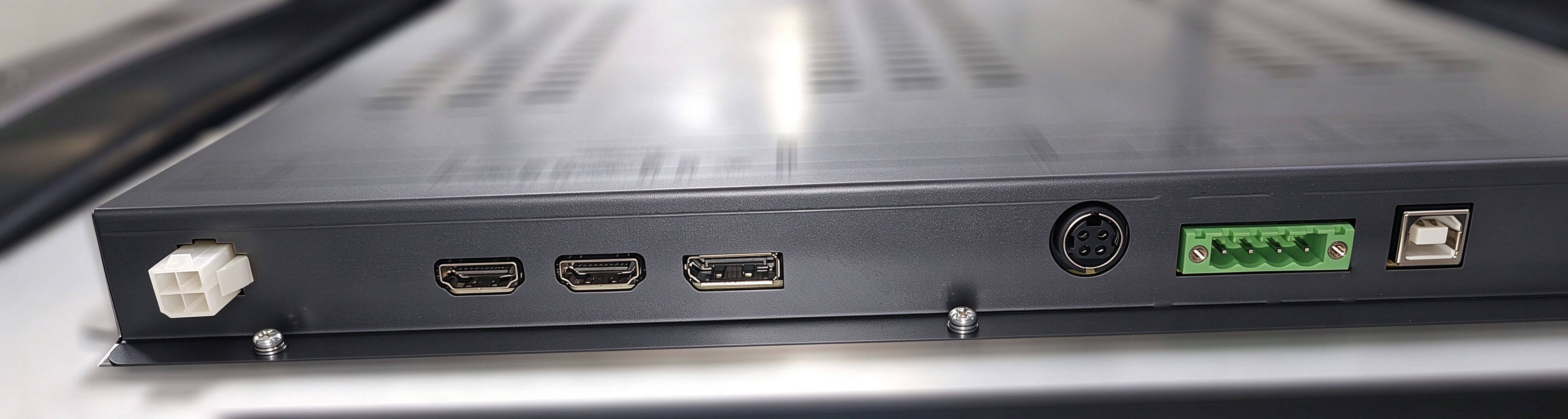

| I/O | HDMI, DP, USB, DC Power input |
| Power Consumption | Refer to Datasheet |
| Accessories | Power Adapter, HDMI cable, USB cable |
| Warranty | 1 Year |
