Portrait D Curved
Portrait Curved D-1500R Wide Color Gamut Closed Frame TouchMonitor (4K)
Features & Benefits
- ›Curved C Type R1500 (Convex)
- ›Wide color gamut and high color saturation
- ›Brightness 500nits and customizable
- ›UHD (4K) resolution
- ›P-Cap technology, tempered and safety glass
- ›No LED Lightened Frame
- ›Easy integration and low maintenance
- ›Excellent performance, accuracy and reliability with drift-free operation
Applications
- ›Gaming
- ›Kiosk
- ›Desktop
- ›Self-service
- ›IDS
- ›Advertisement
Product Overview
The CTT 55" Curved D is a wide color gamut closed-frame touch monitor designed for portrait or landscape installation using floating mounts, tabletop stands, wall mounts, or floor stands.
Equipped with air bonding technology and rear-mounted LEDs, the monitor features an industrial-grade 4K UHD curved LCD panel. CTT's wide color gamut technology enhances color saturation and image clarity, while the 1500R curvature aligns with the human eye's natural viewing field. Precise capacitive touch and advanced imaging technology ensure smooth, responsive operation. Rear-mounted LEDs, particularly in portrait mode, further enhance the user experience.

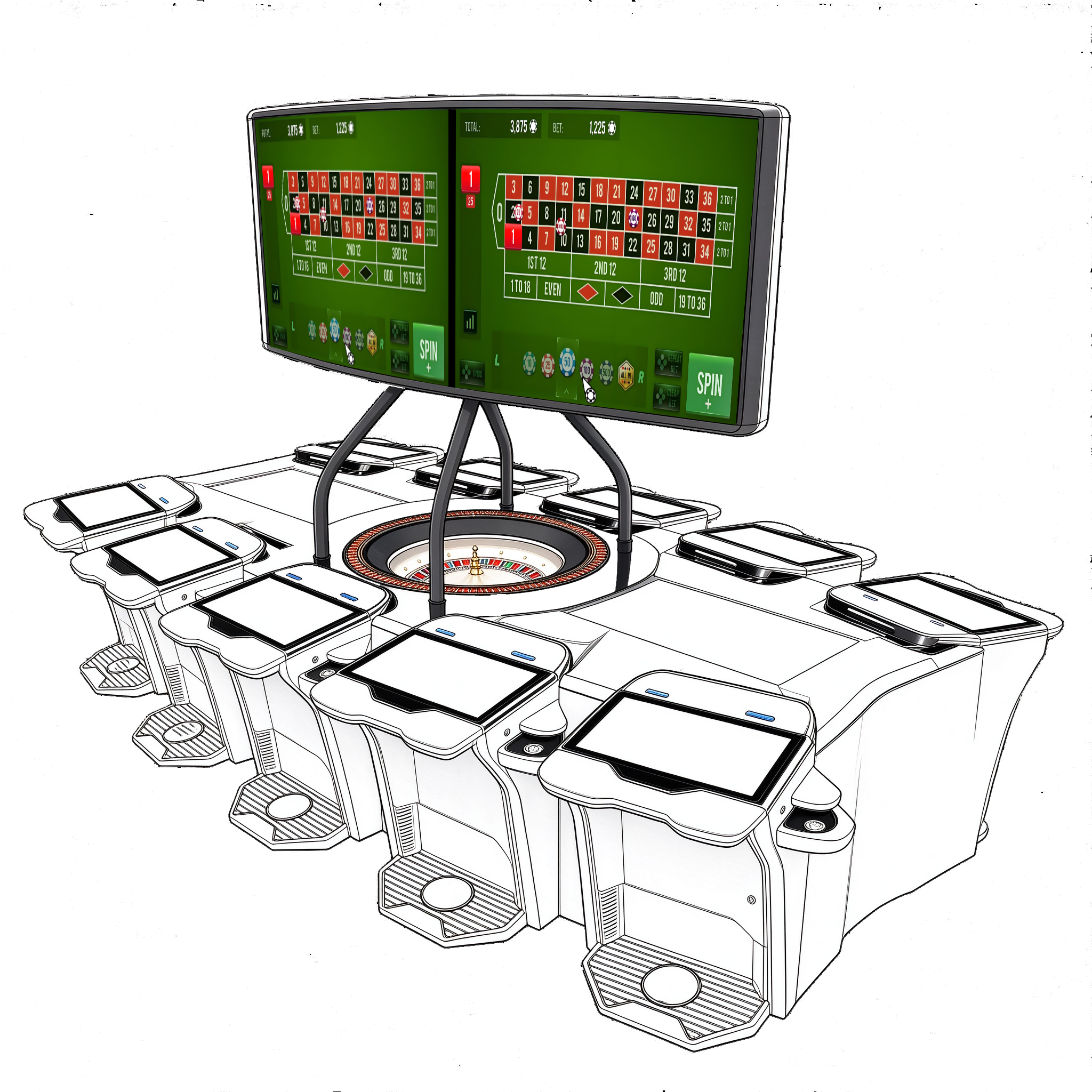

When used as a top-mounted display on roulette tables, the Curved D provides a superior alternative to MiniLED: at equal cost, it achieves higher resolution, better image quality, and lower power consumption.
The monitor is applicable across self-service equipment, the gaming industry, commercial sectors, and industrial environments.
Specification
| Available Size | 55" |
| Curvature | 1500R |

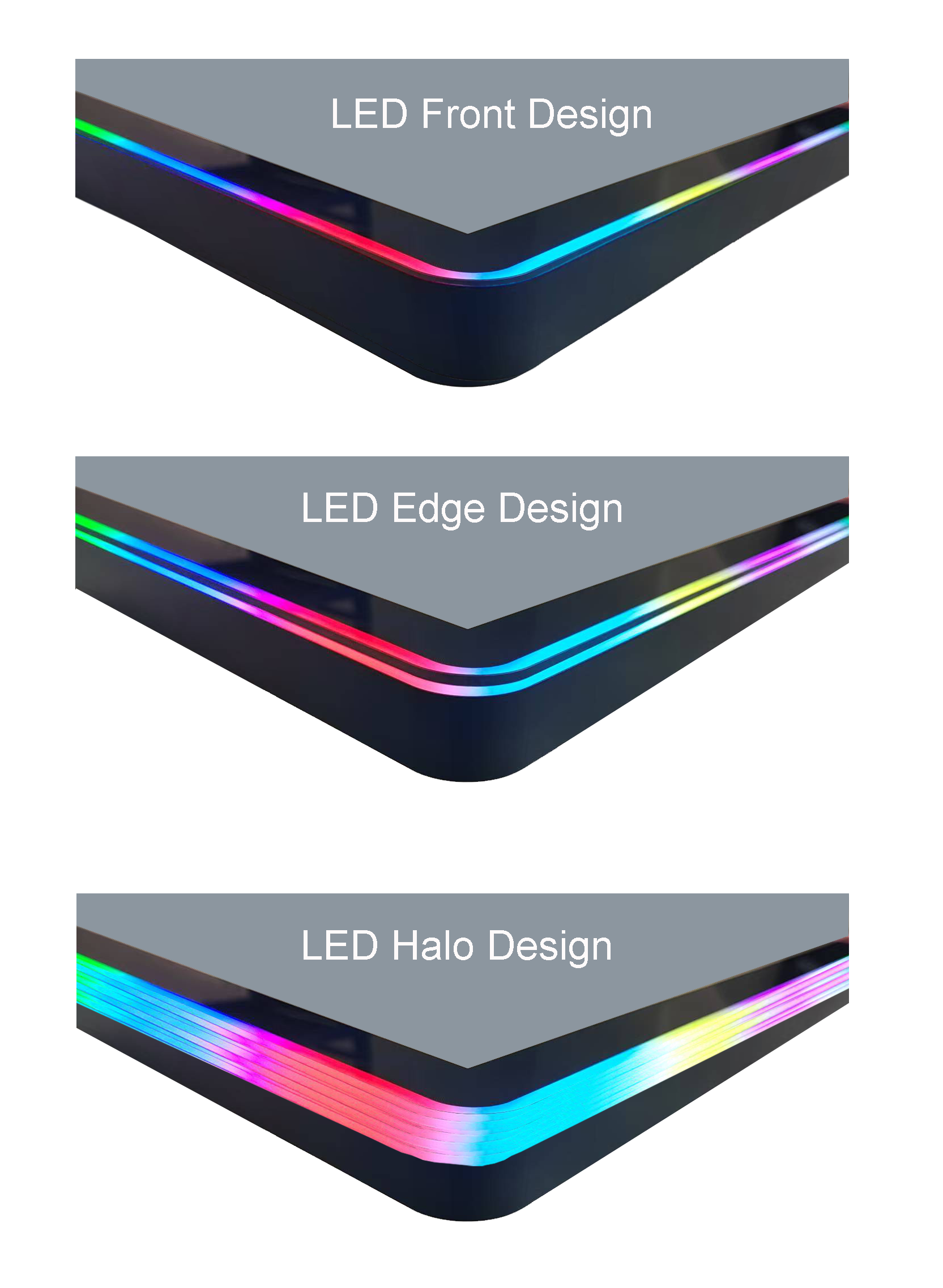

| LED Decoration Design | Edge/ Front/ Halo/ Tailored |
| LCD Resolution | UHD |
| LCD Brightness | 500 cd/m² |
| Colors | 1.07B(UHD) |
| Saturation | Wide Color Gamut (≥85% NTSC 1931) |
| Contrast Ratio | 4000:1 |
| View Angle | 178°/178° |
| Touch Technology | P-Cap (Air Bonding) |
| Operation System | N/A |
| Computer Configuration | Optional |

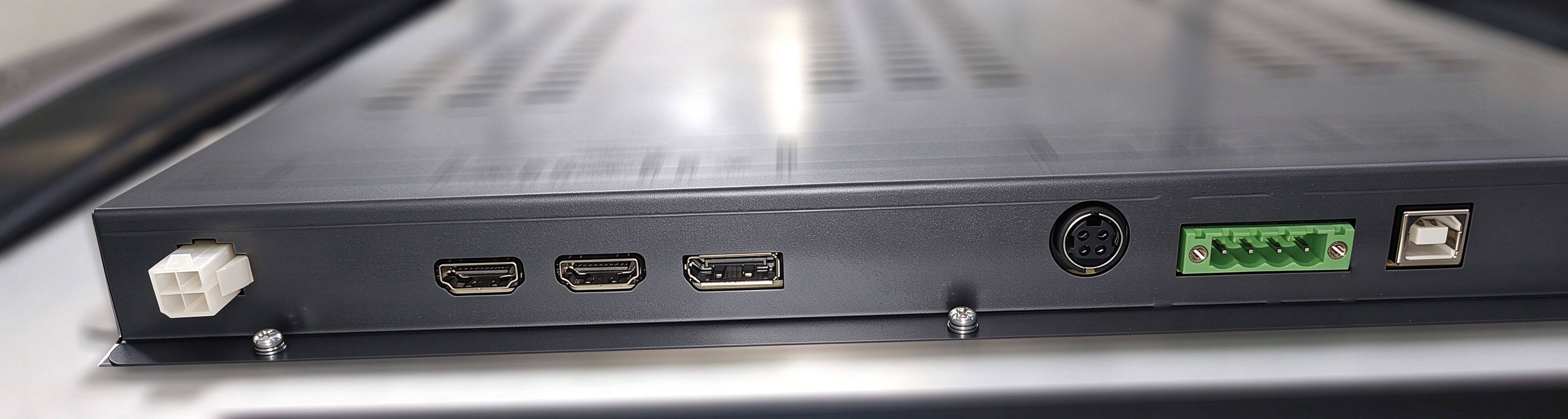

| I/O | HDMI, DP, USB, DC Power input |
| Power Consumption | Refer to Datasheet |
| Accessories | Power Adapter, HDMI cable, USB cable |
| Warranty | 1 Year |
