Display Accessories Kits
Display Key Component Kit
1-Year WarrantyFull kits for displayMarket Proven kits
Features & Benefits
- ›Reliable and industry market proven kits
- ›Power brick with different power cord
- ›LCD panel driver A/D board

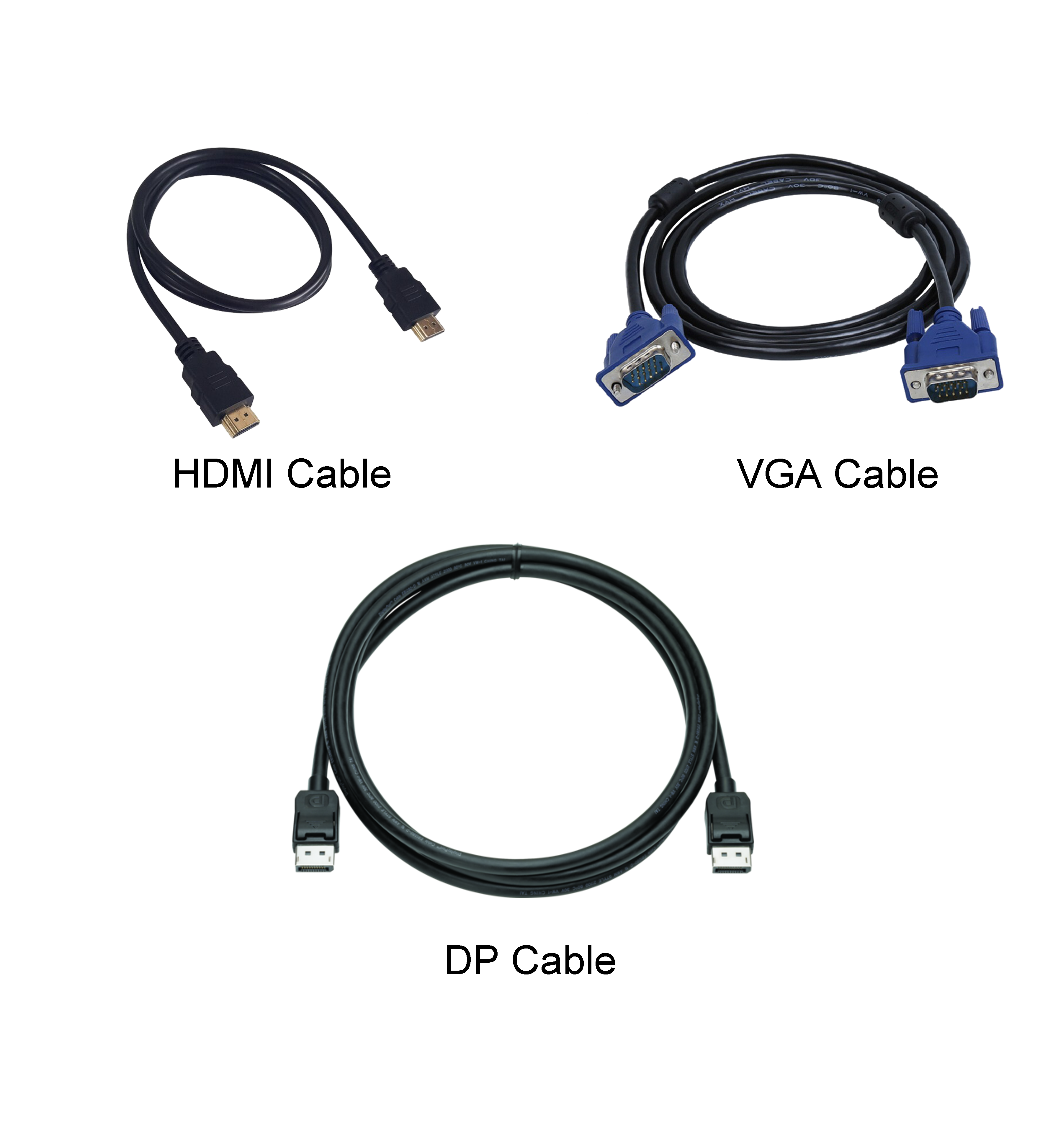

- ›Related FPC cable and regular cable available
- ›Full kits base on LCD Panel for OEM/ ODM
- ›Debugging trainning support
- ›Rockchip / Intel Mother Board
- ›Flexible cooperation mode
Applications
- ›Display manufacturer
- ›Maintenance service
- ›OEM/ODM
Product Overview
CTT's Accessories Kit provides essential components for display integration including mounting hardware, cables, controller boards and power adapters. Compatible with CTT display products.
Specification
A/D Board
High-performance display controller boards for gaming monitors

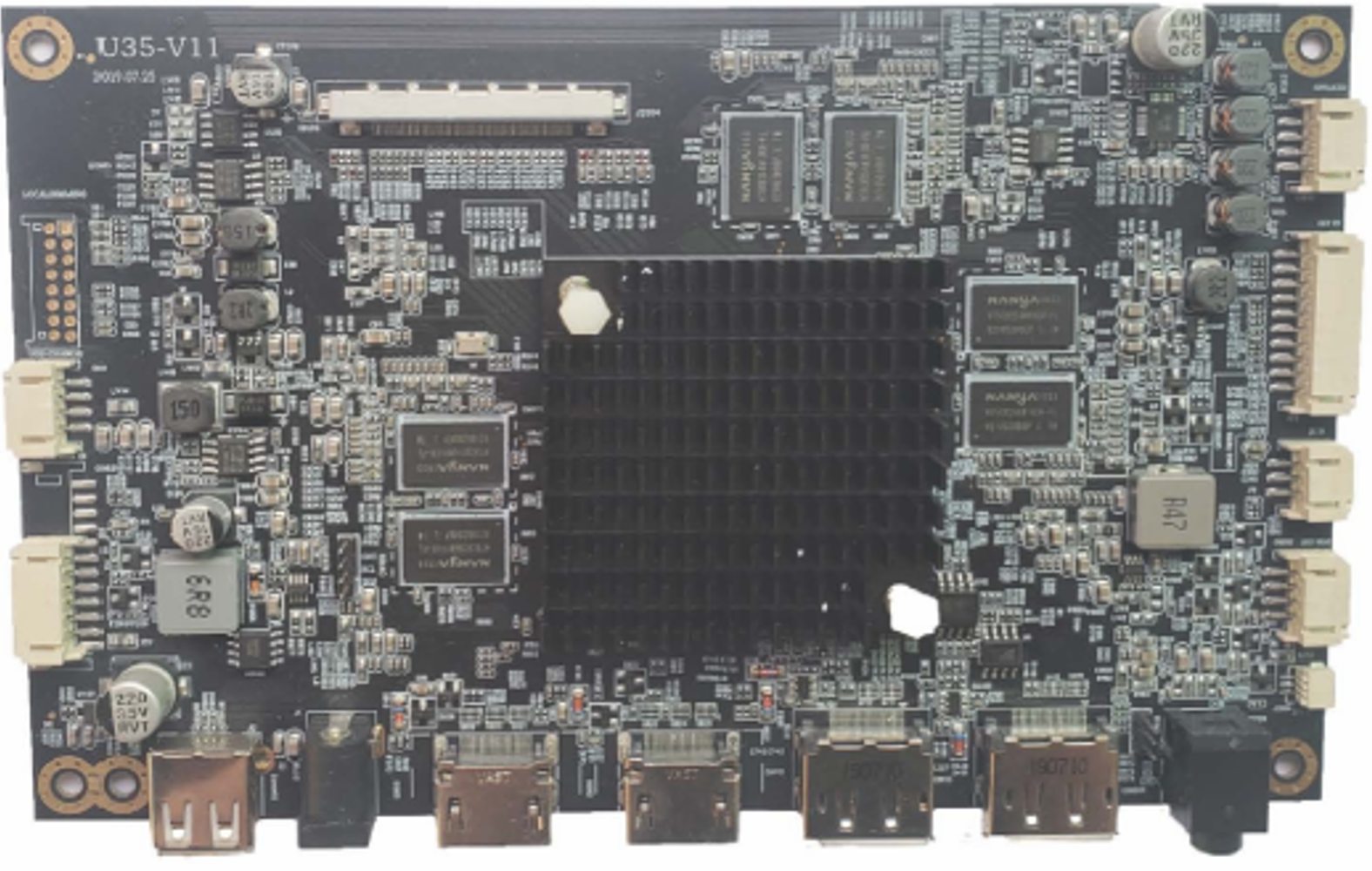

| Model: CTT-U35 | The CTT-U35 is an advanced controller supporting LCD&OLED panels up to 3840x2160 144Hz or 5120x2880 60Hz resolution  CTT-U35 A/D Board |
| Features | Up to 3840x2160 input, 12bit
Edp1.2 (8 lanes with 5.4Gbps or 16 lanes with 2.7Gbps), Vby one (8 lanes) panel interface
DP 1.4 (up to 3840x2160@144Hz) receiver
HDMI 2.0b (up to 3840x2160@100Hz) receiver
Infra-Red controls, External buttons
Frame Buffer Support
USB2.0 OTG For Firmware Upgrade
Supports up to 32*32 blocks Local Dimming Control
Support HDR10 Processing up to 4K resolution |
| Functions - Display | On Screen Display (OSD) |
| Functions - Controls | External Buttons, Infra-Red Control |
| Functions - Image Control | Brightness, Contrast, Color, Saturation, Hue, Sharpness, Up/Down scaling to fit input to panel resolution, Gamma, Auto Picture setup |
| Functions - Other | Picture-in-Picture (PIP), Picture by Picture (PBP), Select input source, Volume control, Factory defaults |
| Colors | 12 bit input / 12bit panel support |
| Panel Power | 3.3V, 5V, 10V, 12V |
| Audio Output | 2 x 8W (MAX) / 8Ω |
| Input Power | 12V, 24V, DC +/-5% |
| Inverter Support | DC, PWM |
| Input Terminals | D.P1.4 x2EA + HDMI2.0b x2EA |

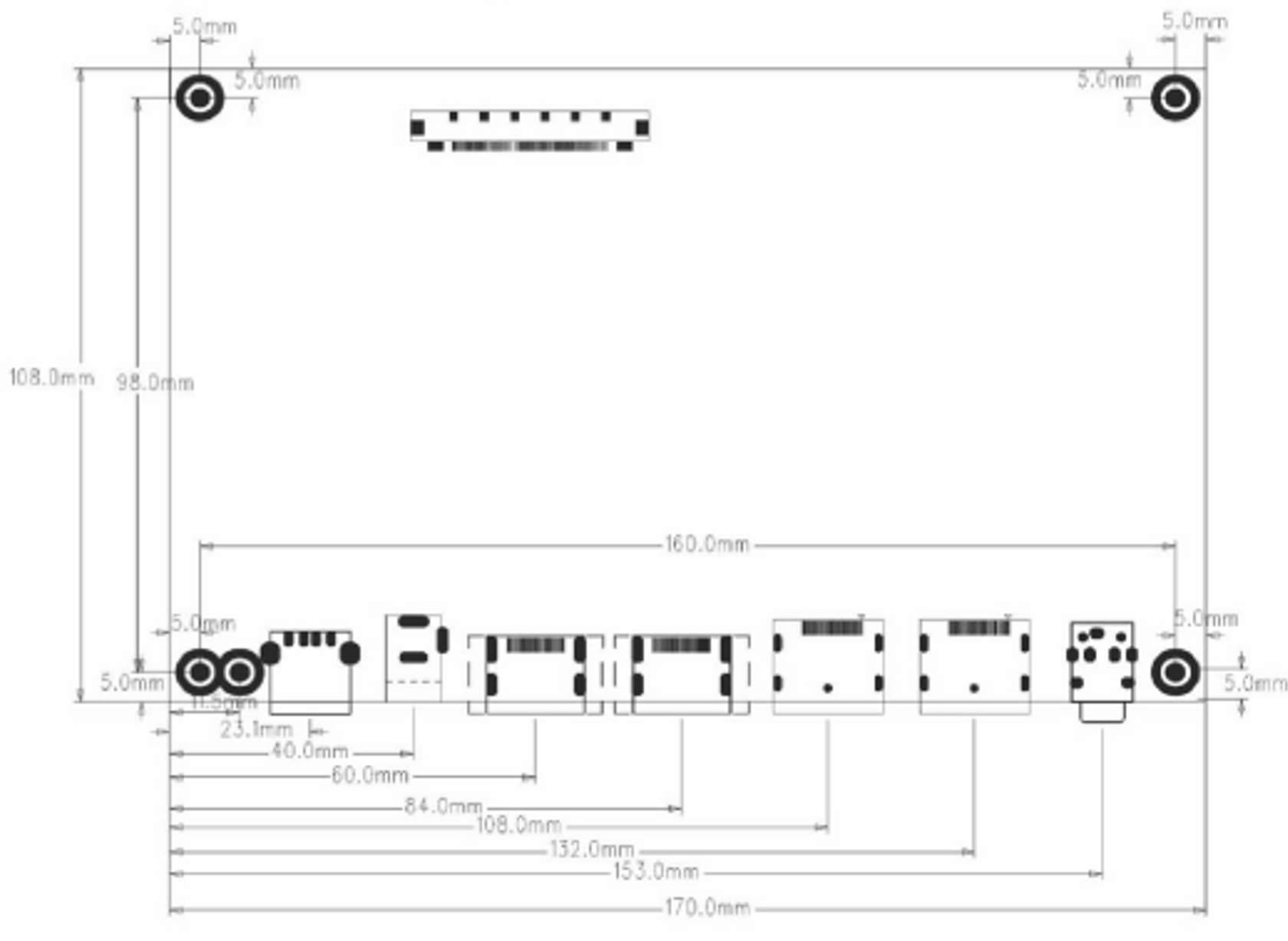

| Mechanical Drawing | 170.0(L) x 108.0(W) x 15(H) mm  CTT-U35 Mechanical Drawing |
| Rohs compliant | Yes |
| Warranty | 1 Year |

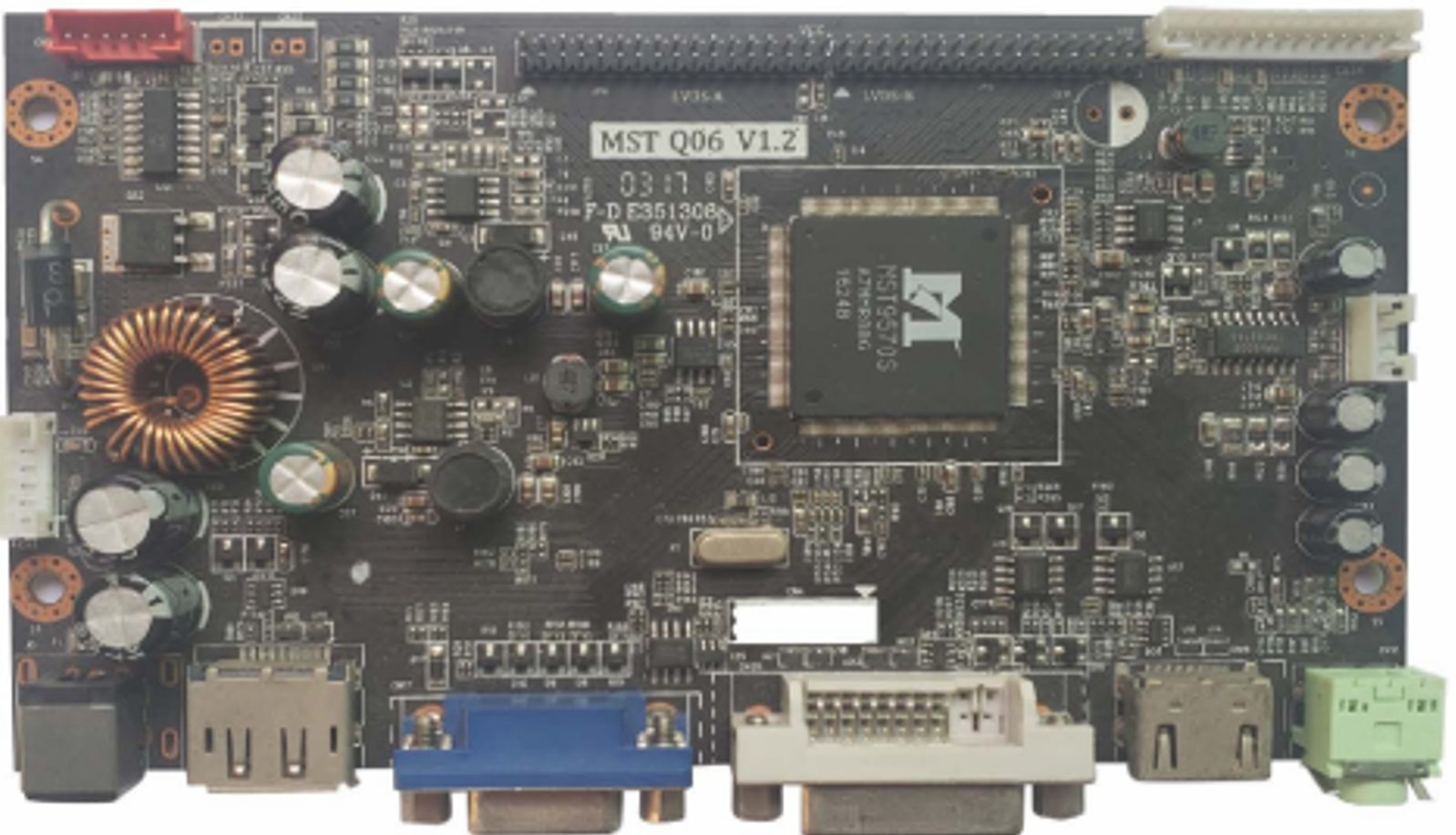

| Model: CTT-Q06 | The CTT-Q06 is an advanced controller supporting LCD&OLED panels up to 2560x1600@60Hz or 1920x1080 144Hz resolution  CTT-Q06 A/D Board |
| Features | Up to 2560x1600 input, 10bit
4-CH LVDS type panel interface
D.P 1.2 (up to 2560x1600@60Hz) receiver
DVI-D (up to 2560x1600@60Hz) receiver
HDMI 1.4 (up to 2560x1600@60Hz) receiver
VGA (up to 1920x1080@60Hz) receiver
Infra-Red controls, External buttons |
| Functions - Display | On Screen Display (OSD) |
| Functions - Controls | Infra-Red controls, External buttons |
| Functions - Image Control | Brightness, Contrast, Color, Saturation, Hue, Sharpness, Up/Down scaling to fit input to panel resolution, Gamma, Auto Picture setup |
| Functions - Other | Select input source, Volume control, Factory defaults |
| Colors | 10 bit input / 10 bit panel support |
| Panel Power | 5V, 10V, 12V |
| Audio Output | 2 x 3W (MAX) / 8Ω |
| Input Power | 12V, 24V, DC +/-5% |
| Inverter Support | DC, PWM |
| Input Terminals | D.P1.2 + DVI-D + HDMI1.4 + VGA |

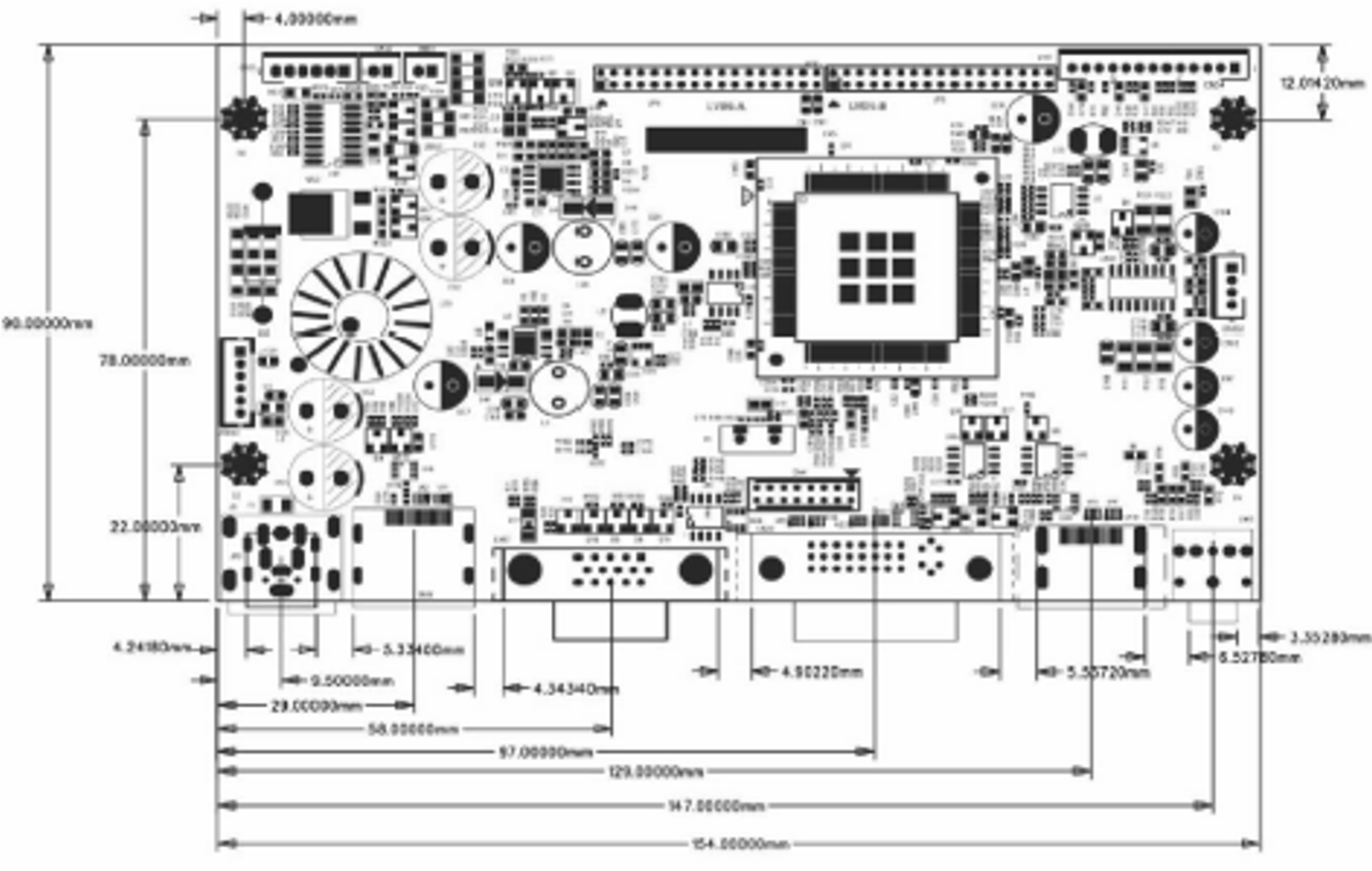

| Mechanical Drawing | 154.0(L) x 90.0(W) x 15(H) mm  CTT-Q06 Mechanical Drawing |
| Rohs compliant | Yes |
| Warranty | 1 Year |

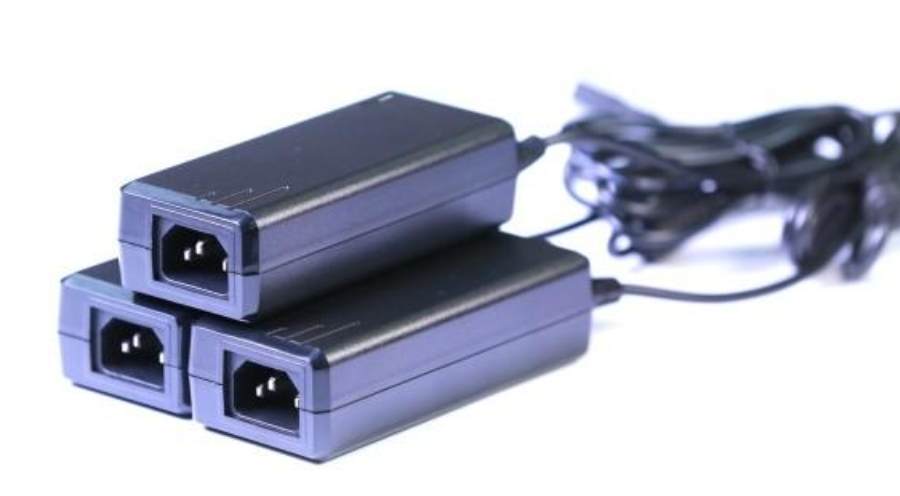

Power Brick
Reliable power solutions with multiple voltage options
| Product Overview | CTT power bricks provide stable DC power for display systems with multiple voltage and wattage options  Power Brick |
| Input Voltage | 200-240Vac |
| Input Frequency | 50-60Hz |
| Surging Current | 90A/264V |
| Operation Temperature | -10~+40°C |
| Operation Humidity | 10%~90%RH |
| Conducted Emission | Class B |
| Radiated Emission | Class B |
| Harmonic Current | Class A |
| ESD | 8KV air, 4KV Contact |
| RF Field Susceptibility | 3V/m |
| EFT Bursts | 1KV |
| Surge Susceptibility | 1KV/Line-Line, 2KV/Line-FG |
| Conducted Susceptibility | 3V |
| Magnetic Field Immunity | 3A/m |
| Voltage Dips Interruption | >95% dip 0.5 Periods, 30% dip 25 Periods, >95% Interruption Periods |

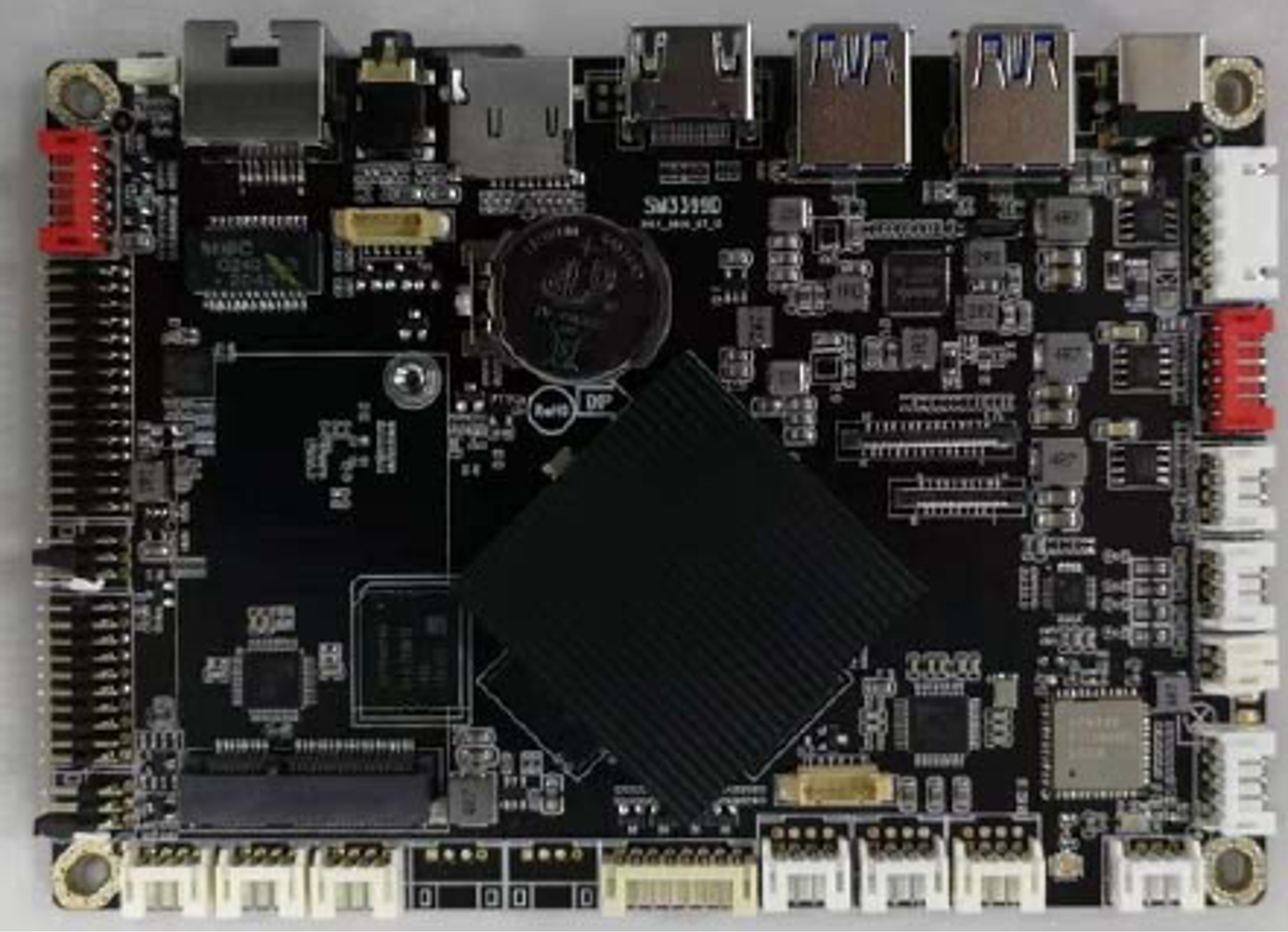

Mother Board - Android Board
SM3399D for Commercial PC - Powered by Rockchip
| Product Image | SM3399D Android Board with RK3399 chipset for commercial display applications  SM3399D Android Board |
| Chip | RK3399  Rockchip |
| Operation System | Android 7.1 |
| Memory | 2G/4G LPDDR4 |
| Storage | 16G/32G e-MMC |
| External Storage | TF Card, USB |
| Wi-Fi/Bluetooth | 2.4G/5G Wi-Fi, Bluetooth 4.2 |
| Network | RJ45 10M/100M/1000M |
| 4G | mini PCI-e 2G/3G/4G |
| LVDS/eDP | LVDS X1, eDP X1 Max resolution 1920X1080 |
| MIPI | Support MIPI Camera Input |
| HDMI Output | HDMI 2.0 |
| USB | USB3.0 X2 standard I/O, USB2.0 X6 Terminal |
| Other Interface | RS232 X3, UART X1, GPIO X6, Mic/Speaker 8Ω8W |
| Touchscreen | Support USB Touchscreen |
| Timer | Auto Open/Off |

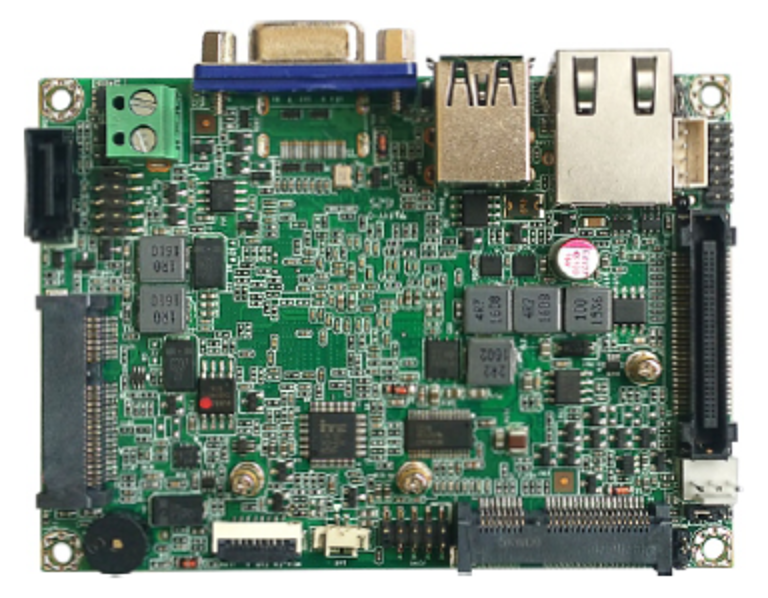

Mother Board - Intel Board
LX-PC121 - Powered by Intel Bay Trail
| Product Image | LX-PC121 Intel Mother Board with Bay Trail J1800/J1900 processor for embedded display systems  LX-PC121 Intel Mother Board |
| Brand | Intel  Intel |
| CPU | Intel Bay Trail J1800/J1900 |
| Chipset | Intel Bay Trail SOC |
| Memory | DDR3L memory, Up to 8GB |
| LAN - IC | Intel I211AT |
| LAN - Speed | 10/100/1000Mbps adapting |
| LAN - Interface | 1 x RJ45 |
| Storage - SATA | 1 x SATAII port, 1 x mSATA port |
| Display - GPU | Intel HD Graphics 533MHz |
| Display - Port/Header | 1 x VGA header, 1 x HDMI Port |
| USB - Speed | USB3.0 and USB 2.0 |
| USB - Port/Header | 2 x front Standard USB header |
| Audio - Interface | Rear: 1 x Line-Out, 1 x MIC |
| I/O - IC | ITE 8786E |
| I/O - COM | 1 x COM |
| Other - Mini-PCIE | 1 x standard Mini-PCIE port, support WIFI/3G/4G, mSATA share with SATA2 (BOM Choose) |
| Other - GPIO | 8 x GPIO |
| Other - Extended Slot | support display, audio, lan, USB, com |
| Other - Power-In | 1 x DC-Jack, 1 x ATx 2pin terminal, 9V-24V DC wide range input |
| PCB Spec | 100 x 72mm |
| Work Temp - T range | 0~60°C |
| Work Temp - H range | 5~85%RH |
