Closed Frame AiO Computer (ARM/X86)

Closed Frame AiO Computer (ARM/X86) —Touch (Option)

Closed Frame AiO Computer (ARM / X86) - View 1
Closed Frame AiO Computer (ARM / X86) thumbnail 1
Closed Frame AiO Computer (ARM / X86) thumbnail 2
Closed Frame AiO Computer (ARM / X86) thumbnail 3
Closed Frame AiO Computer (ARM / X86) thumbnail 4
1-Year WarrantyCE/FCC CertificationAiO Computer

Features & Benefits

  • ›Closed frame design
  • ›Wide / Standard aspect ratio
  • ›FHD/UHD resolution
  • ›7"-55" Size Available
  • ›Built-in OS (Windows/Android/Linux)
  • ›Full enclosure protection
  • ›WiFi & Ethernet connectivity (Option)
  • ›App store support

Applications

  • ›Digital Signage
  • ›Smart Kiosk
  • ›Information Display

Product Overview

CTT's All-in-One Touch Computer integrates a high-performance industrial LCD display, a precision touchscreen, and a powerful computing engine into a single slim enclosure — a complete interactive PC ready to run out of the box. Available with either Android or Windows, it offers a clean, cable-free installation with no external host required.

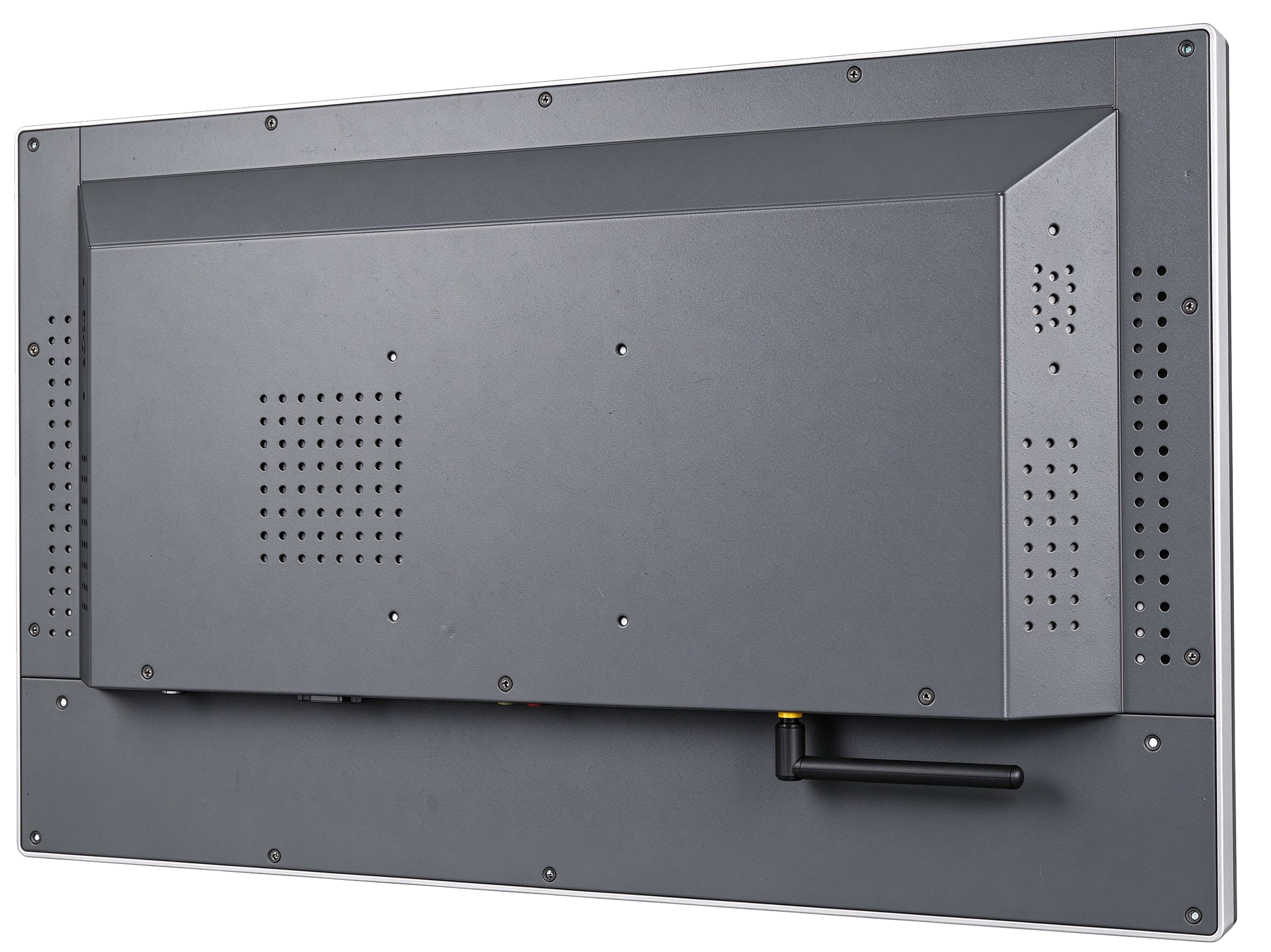

The display is protected by a single sheet of black mirror glass with an edge-to-edge finish, delivering vivid color gamut imagery and an easy-to-clean surface that resists dust and fingerprints. The frame is precision-machined aluminum with a silver powder-coat finish, while the rear enclosure is deep space-gray textured metal — a durable, production-grade build built for always-on environments.

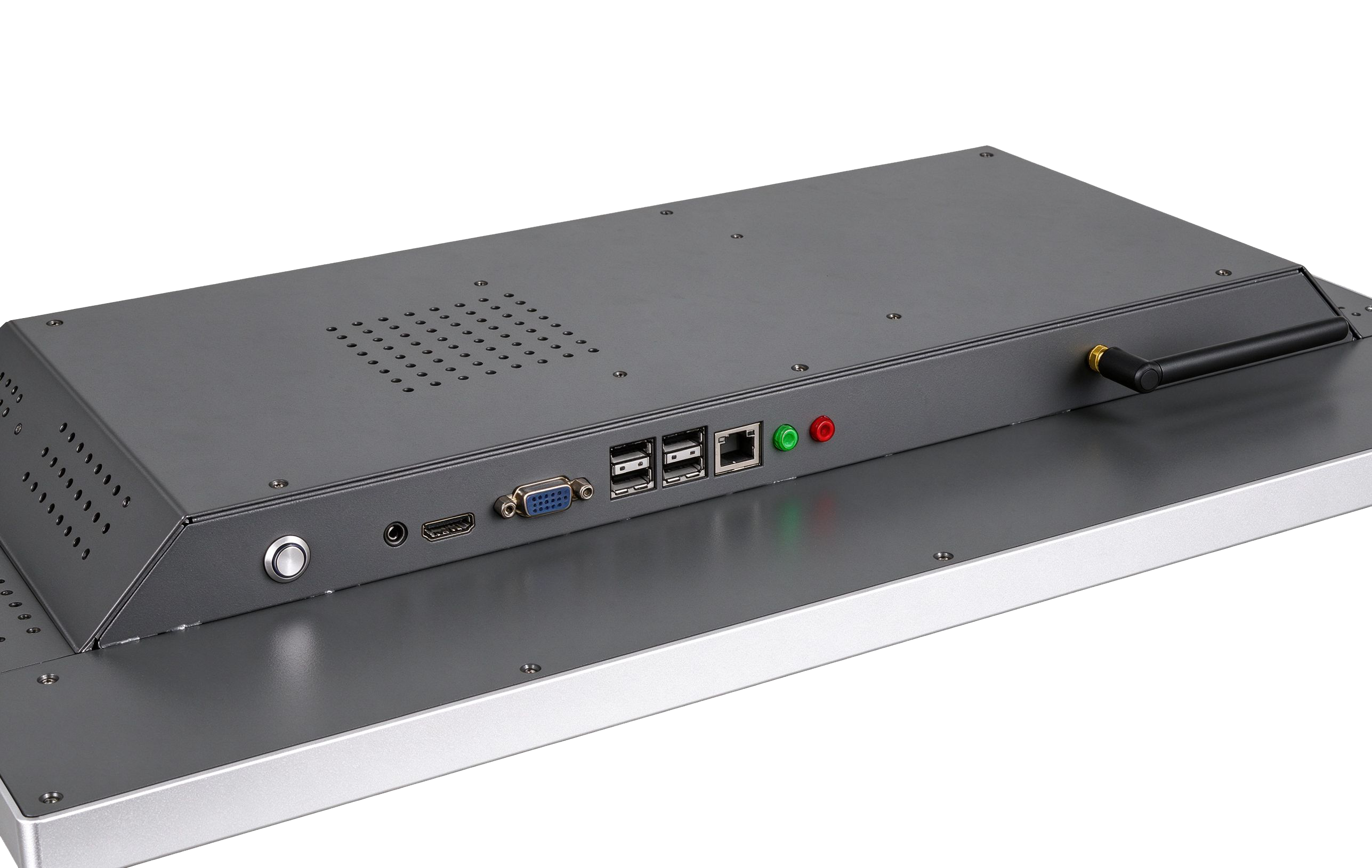

Rated for reliable multi-touch input, the unit supports smooth, accurate interaction through CTT's proprietary P-Cap touch technology. A full range of I/O — USB, HDMI, VGA, LAN, and audio — ensures effortless integration with peripherals and networks.

Purpose-built for kiosks, retail self-service, hospitality, museums, digital signage, and gaming applications, the CTT All-in-One Touch Computer delivers the performance, durability, and visual quality your deployment demands.

Specification

Available Size7"-55"
CurvatureFlat
LED Decoration DesignN/A
LCD ResolutionFHD/UHD
LCD Brightness300-500 cd/m²
Colors16.7M(FHD)/1.07B(UHD)
SaturationStandard
Contrast Ratio1000:1
View Angle178°/178°
Touch TechnologyP-Cap (option)
Operation SystemWindows/Android/Linux
Computer ConfigurationCPU/GPU, Memory, Storage, Customize base on requirement.
I/OHDMI & VGA, USB, RJ45, WiFi, Audio, Power button, DC Power input
Power ConsumptionRefer to Datasheet
AccessoriesPower Adapter
Warranty1 Year
