Rear Mount FHD Open Frame

7"-55" Rear Mount FHD Open Frame Display

Rear Mount FHD Open Frame - View 1

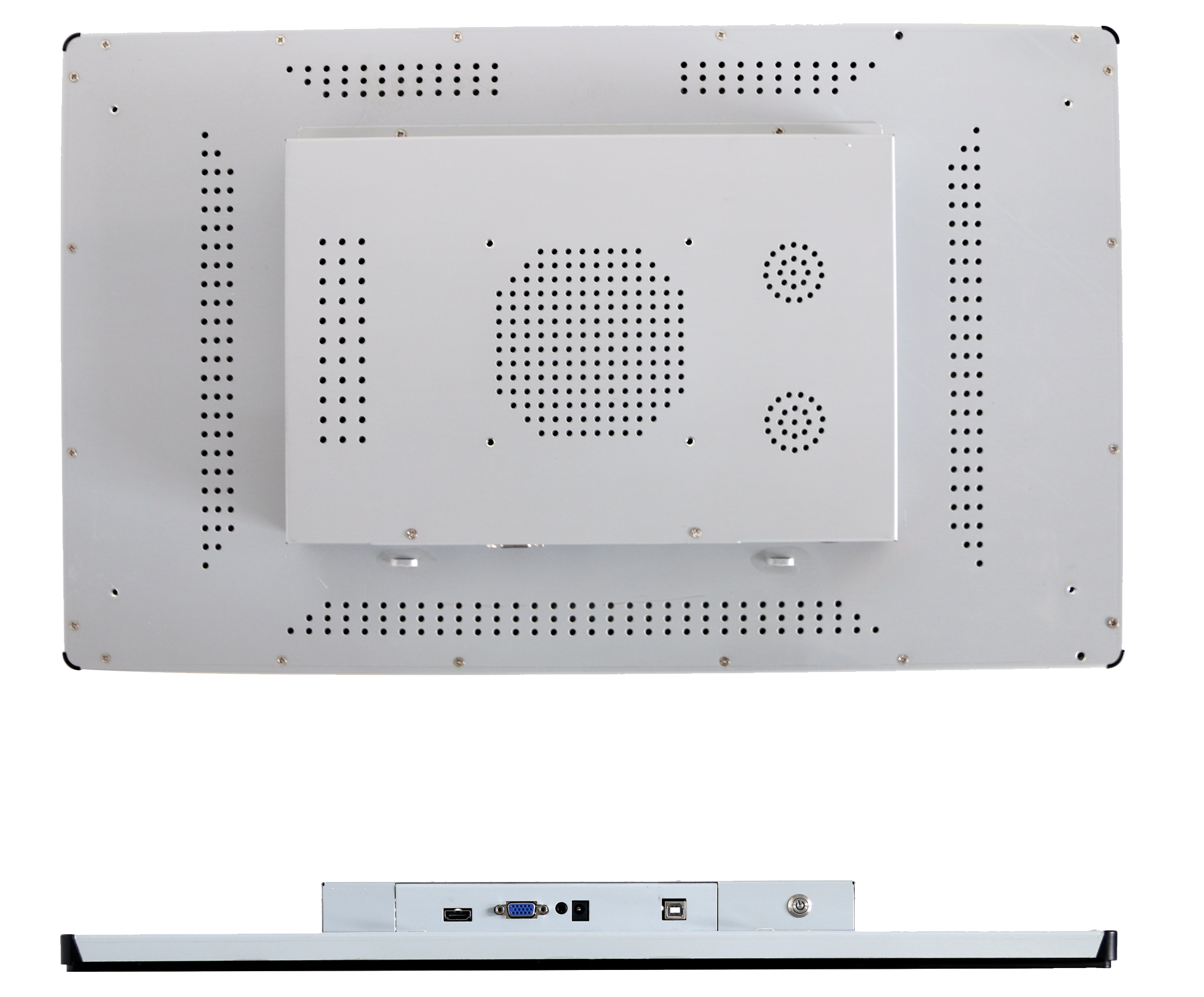

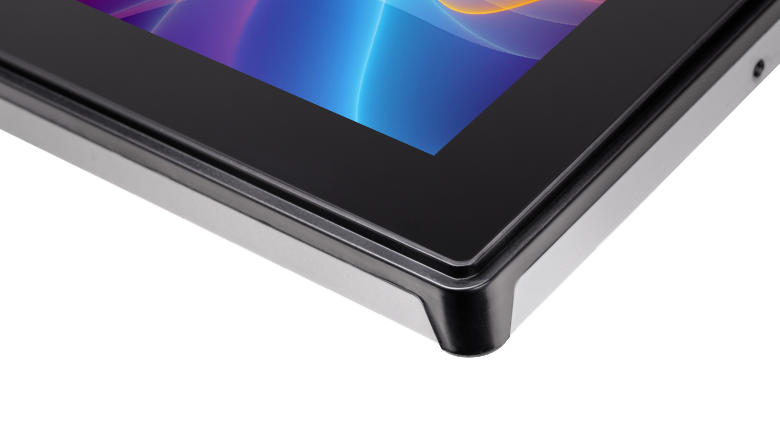

Rear Mount FHD Open Frame thumbnail 1
Rear Mount FHD Open Frame thumbnail 2
Rear Mount FHD Open Frame thumbnail 3
Rear Mount FHD Open Frame thumbnail 4
1-Year WarrantyCE/FCC CertificationRear Mount

Features & Benefits

  • ›Rear mount design
  • ›16:9 aspect ratio
  • ›FHD resolution
  • ›7"-55" size range
  • ›Open frame for easy integration
  • ›Rear mount bracket compatible
  • ›Wide operating temperature
  • ›Long product lifecycle

Applications

  • ›Kiosk
  • ›Industrial Control
  • ›Medical
  • ›Transportation
  • ›ATM

Product Overview

Built for demanding commercial environments, the CTT Open Frame Touch Monitor pairs a high-performance embedded LCD with proprietary P-Cap touch technology, delivering accurate, responsive 10-point multi-touch interaction. Available with a Rear Mount design for easy integration into kiosks, cabinets, and custom enclosures, the lineup spans 7" to 55" in FHD resolution, offered in 16:9 as well as 4:3, 5:4, and 16:10 aspect ratios to suit virtually any enclosure layout.

Engineered around CTT's exclusive LED backlight system, the display delivers full color gamut and rich saturation, backed by industrial-grade components designed for long service life, low power consumption, and minimal heat output. Its ultra-thin, professional-grade construction provides crisp, high-resolution imagery while occupying minimal cabinet space—a clear step above consumer-grade TVs and monitors.

Purpose-built for always-on deployment, the monitor is a proven fit across gaming cabinets, retail kiosks, self-service terminals, financial services, transit, conferencing, education, and healthcare environments.

Specification

Available Size7"-55"
CurvatureFlat
LED Decoration DesignN/A
LCD ResolutionFHD
LCD Brightness300-500 cd/m²
Colors16.7M
SaturationStandard
Contrast Ratio1000:1
View Angle178°/178°
Touch TechnologyP-Cap
Operation SystemN/A
Computer ConfigurationOptional
I/OHDMI, DP, USB, DC Power input
Power ConsumptionRefer to Datasheet
AccessoriesPower Adapter, HDMI/DP cable, USB cable, Mounting Kits
Warranty1 Year
