10.1" Digital Button Deck
10.1" Digital Button Deck with Wireless Charging (1280×800)
Features & Benefits
- ›10.1" display size
- ›Qi 15W wireless charging
- ›Flat design
- ›1280×800 resolution
- ›P-Cap touch technology
- ›Physical button replacement
- ›Easy integration
- ›Low power consumption
Applications
- ›Gaming Cabinet
- ›Slot Machine
- ›Kiosk
- ›Self-service
Product Overview

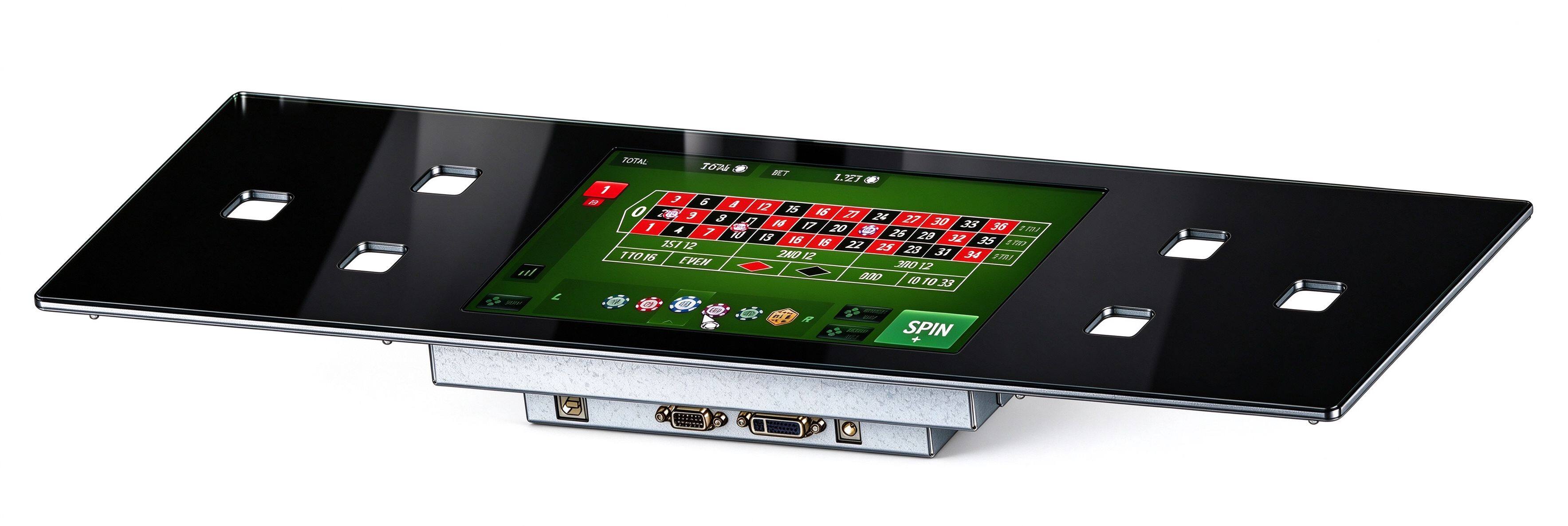

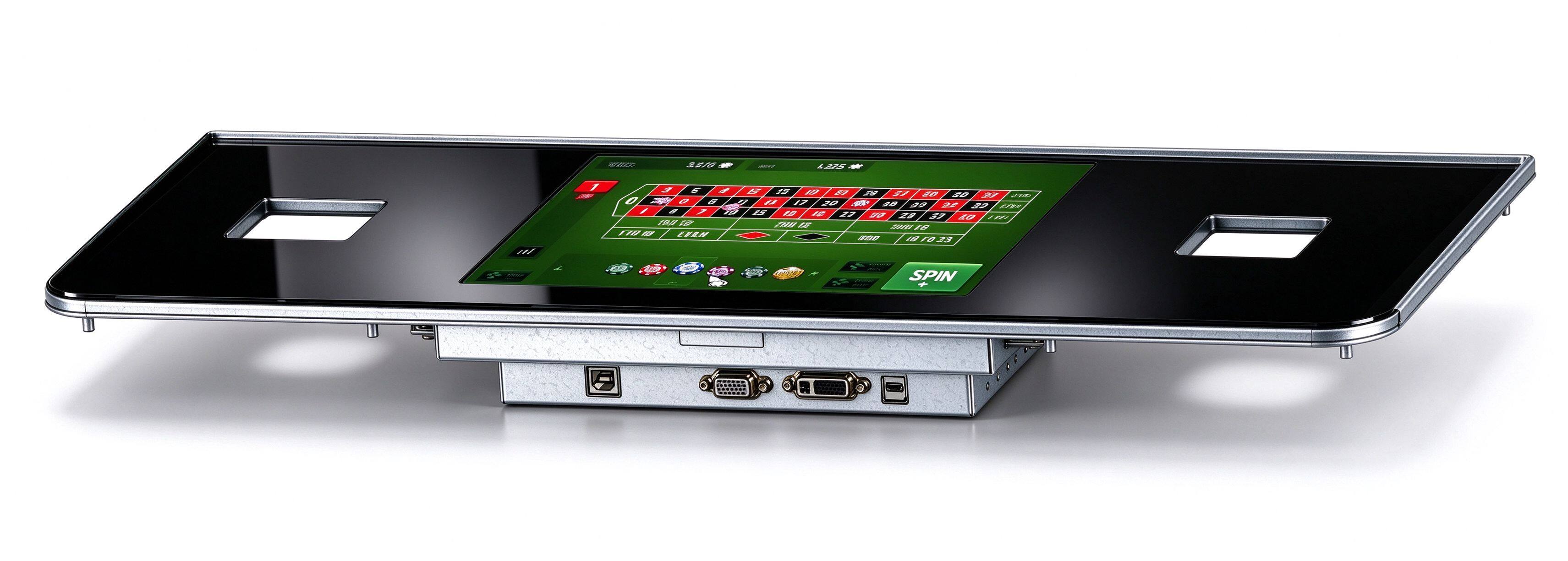

The 10.1-inch open-frame button deck combines a high-performance embedded LCD touch monitor with a large cover glass driven by CTT's PCAP touch technology, delivering responsive 10-point multi-touch. Purpose-built for gaming cabinets, it replaces static mechanical buttons with dynamic, programmable graphics—multi-color feedback, animated responses, and game-synced effects that keep players engaged. A built-in wireless charger and physical spin/play button preserve the tactile feel players expect, while the flange-style side mounting slots enable secure, tool-friendly installation into the cabinet. The result: a durable, interactive player interface that enhances gameplay, simplifies integration, and elevates the gaming experience.
Specification
| Available Size | 10.1" |
| Curvature | Flat |
| LED Decoration Design | N/A |
| LCD Resolution | 1280×800 |
| LCD Brightness | 400 cd/m² |
| Colors | 16.7M |
| Saturation | 72% NTSC (CIE 1931) |
| Contrast Ratio | 800:1 |
| View Angle | 170°/170° |
| Touch Technology | P-Cap |
| Operation System | N/A |
| Computer Configuration | Optional |

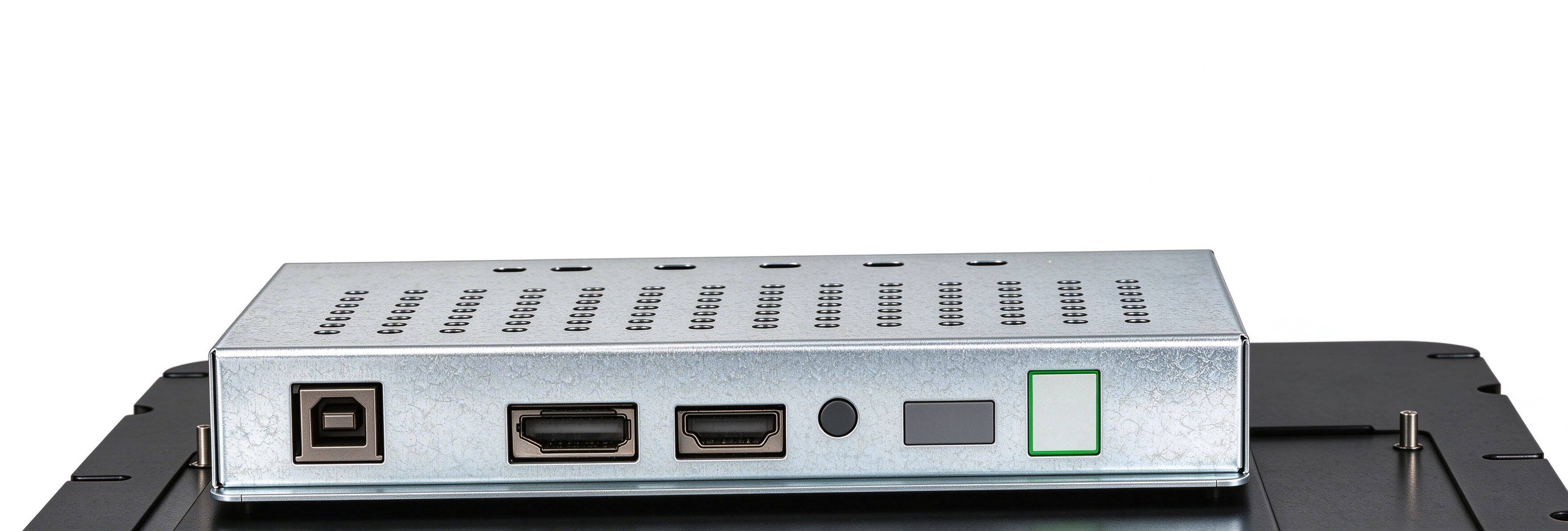

| I/O | HDMI, DP, VGA / DVI-I (Option), USB, DC Power input |
| Power Consumption | 20W |
| Accessories | Power Adapter, HDMI cable/DP Cable, USB cable |
| Warranty | 1 Year |
