Circular LED Framed

Circular LED Framed Touch Monitor (1280×1280)

Circular LED Framed - View 1
Circular LED Framed thumbnail 1
Circular LED Framed thumbnail 2
Circular LED Framed thumbnail 3
Circular LED Framed thumbnail 4
1-Year WarrantyCE/FCC CertificationCircular Design

Features & Benefits

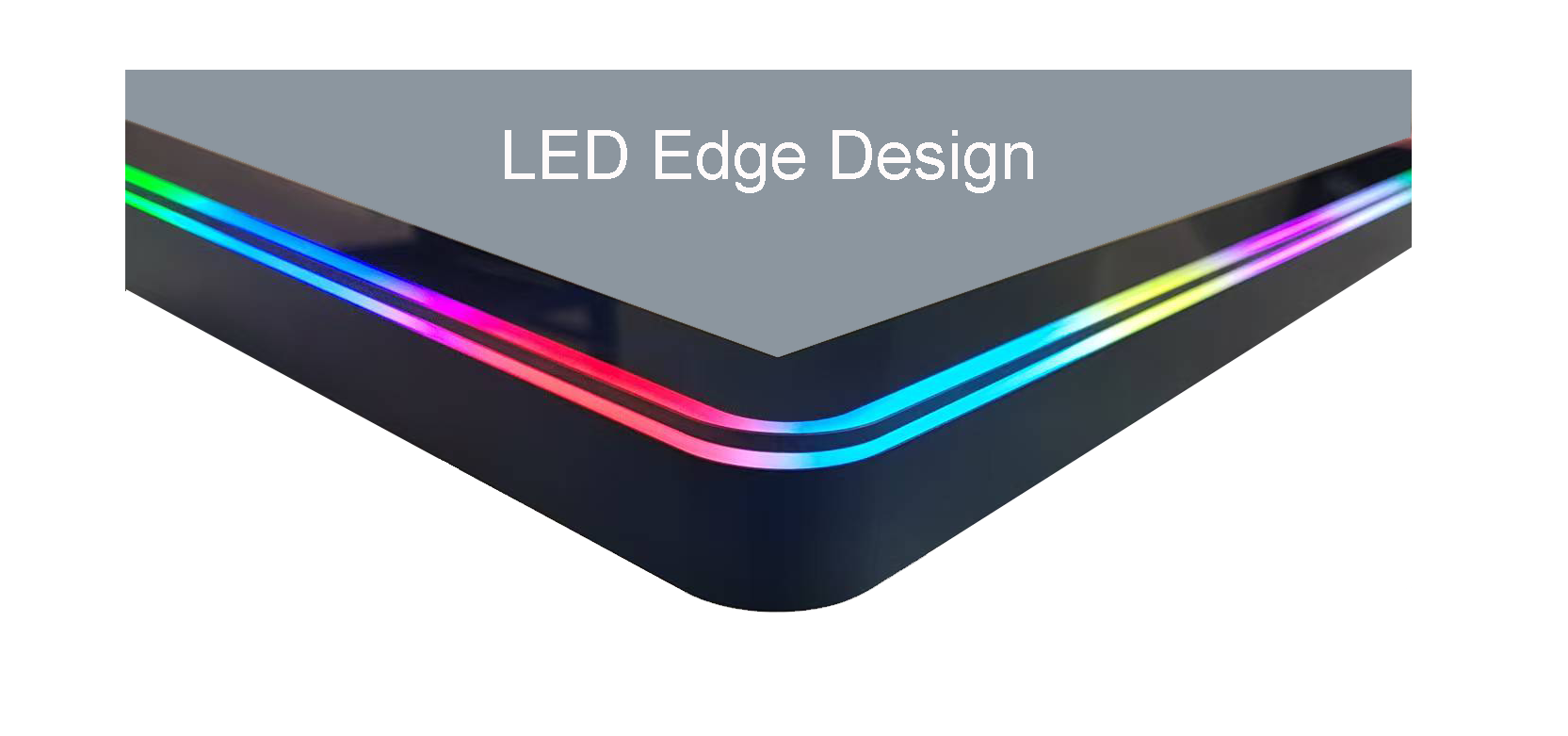

  • ›Edge LED Design
  • ›Circle shape
  • ›1280×1280 resolution
  • ›Brightness 700 cd/m²
  • ›P-Cap touch technology
  • ›Unique circular form factor
  • ›Easy integration
  • ›High brightness for visibility

Applications

  • ›Gaming
  • ›Casino
  • ›Entertainment

Product Overview

The 23.6-inch circular touch All-in-One Solution can be powered by Android or Windows, per customer requirements. Designed with tabletop, wall mount, and floor stand accessories that conceal all cables and buttons while securely holding the device, it makes your application more attractive and cleaner.

Its distinctive circular form sets it apart from conventional rectangular displays—a bold, eye-catching design that instantly draws attention and adds a unique visual identity to any setting. The circle is more than a shape: it turns the display into a striking centerpiece that invites interaction. When mounted as a cabinet topper on gaming machines, the circular display sets the cabinet apart from the crowd, delivering a memorable, branded presence that drives player engagement.

The closed-frame circle LCD and circular touchscreen feature a slim profile and compact outside dimensions, enabled by state-of-the-art, energy-saving LED backlight that consumes less power and generates less heat. Built for touch with CTT's proven expertise and reliability, this all-in-one display pairs a brilliant wide-viewing-angle circular panel with interactive performance, instantly grabbing and holding users' attention in gaming cabinets, kiosks, hotels, museums, retail self-service, restaurants, digital signage, golf/sports, and advertising environments.

Specification

Available Size23.6"
CurvatureFlat
LED Decoration DesignEdge Design
LCD Resolution1280×1280
LCD Brightness700 cd/m²
Colors16.7M
Saturation72% NTSC (CIE 1931)
Contrast Ratio1000:1
View Angle178°/178°
Touch TechnologyP-Cap
Operation SystemAndroid (Optional)
Computer ConfigurationOptional

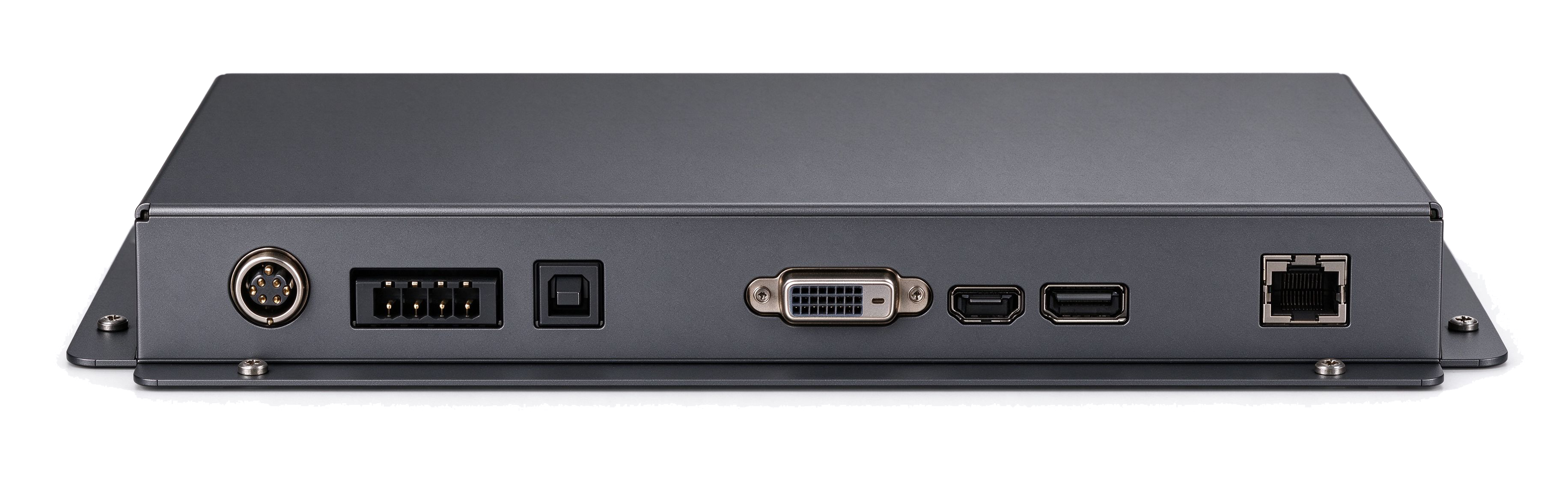

I/OHDMI, DP, VGA, DVI-I (Option), USB, DC Power input / AC input (Option)
Power Consumption100W for Monitor, 20W for LEDs
AccessoriesPower Adapter, HDMI cable/DP Cable, USB cable
Warranty1 Year
